Integrations¶

Connecting BimZone to the systems around it: Autodesk Construction Cloud, Procore and Planon at project level; accounting, API keys, outgoing webhooks, OAuth applications, SCIM and single sign-on at workspace level. This page also explains how sync conflicts are detected and resolved.

Related: Workspace & projects · API reference · operator runbook ACC / Procore activation · Known external blockers

Project integrations (ACC, Procore, Planon)¶

What it does¶

Per-project vendor connections. Autodesk Construction Cloud syncs issues and RFIs and imports models; Procore pushes issues as observations and coordination issues and pulls them back; Planon pushes and pulls assets and spaces. Every connection has a Sync ledger with an outcome per record and a Conflicts tab where both-sides-changed records are resolved one at a time.

Who uses it and why¶

Project admins connect; coordinators live with the results. Connecting uses your own vendor account: "you authorize BimZone on the vendor's site and tokens are stored encrypted."

Prerequisites¶

Project role Admin; the workspace plan must include integrations (the free plan does).
ACC / Procore: the operator must have registered BimZone as an app with the vendor and set the client credentials on the server (see the activation runbook); you need a vendor account with access to the hub/company and project.
Planon: a Planon base URL (https, publicly resolvable) and an API key.
Sync is event-driven: vendor webhooks (registered by the operator) and manual Sync now / Push / Pull. There is no polling schedule.

Step-by-step¶

Project › Overview › Integrations tab.
ACC: on the card press Connect (later Re-authorize) — you are sent to Autodesk to consent and return. Under Live connections the ACC row appears CONNECTED with "never synced". In Import models from Autodesk Construction Cloud pick the Hub and Project, tick models, Import selected. Issue/RFI sync runs on ACC webhooks and on Sync ledger › Sync now (push).
Procore: Connect on the card (OAuth), then in the row pick the company and project ("Change Procore project" later). Use Push (BimZone → Procore), Pull (Procore → BimZone) or Sync ledger › Sync now (both).
Planon: Link a vendor › Planon › Base URL (optional) + API key › Connect (or + Connect a vendor manually with Auth API key / Username / password / OAuth2 token). Sync with Sync ledger › Sync now.
Read the Sync ledger: filter All / OK / Skipped / Conflict / Error; each row shows Time, Direction (push/pull), Entity, Outcome and the vendor's own message (for example "Procore create RFI failed (404)" or {"reason":"unchanged"}).
Resolve conflicts on the Conflicts tab: for each record choose Keep local (BimZone wins; the next push overwrites the vendor) or Take remote (the vendor wins; the next pull applies its fields). The choice runs the sync immediately and is audited.
Disconnect purges the stored credentials and marks the row disconnected; mappings and the ledger are kept.

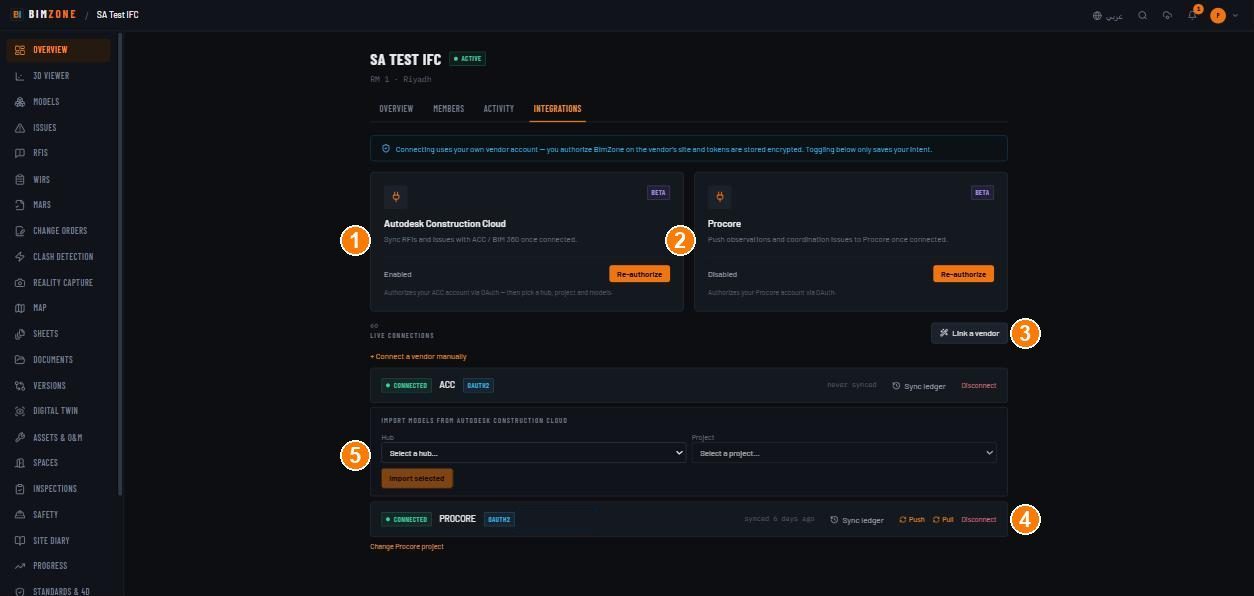

Project integrations

1 · ACC card (Connect / Re-authorize, enabled toggle) · 2 · Procore card · 3 · Link a vendor wizard · 4 · connection row actions (Sync ledger, Push, Pull, Disconnect) · 5 · Import models from ACC

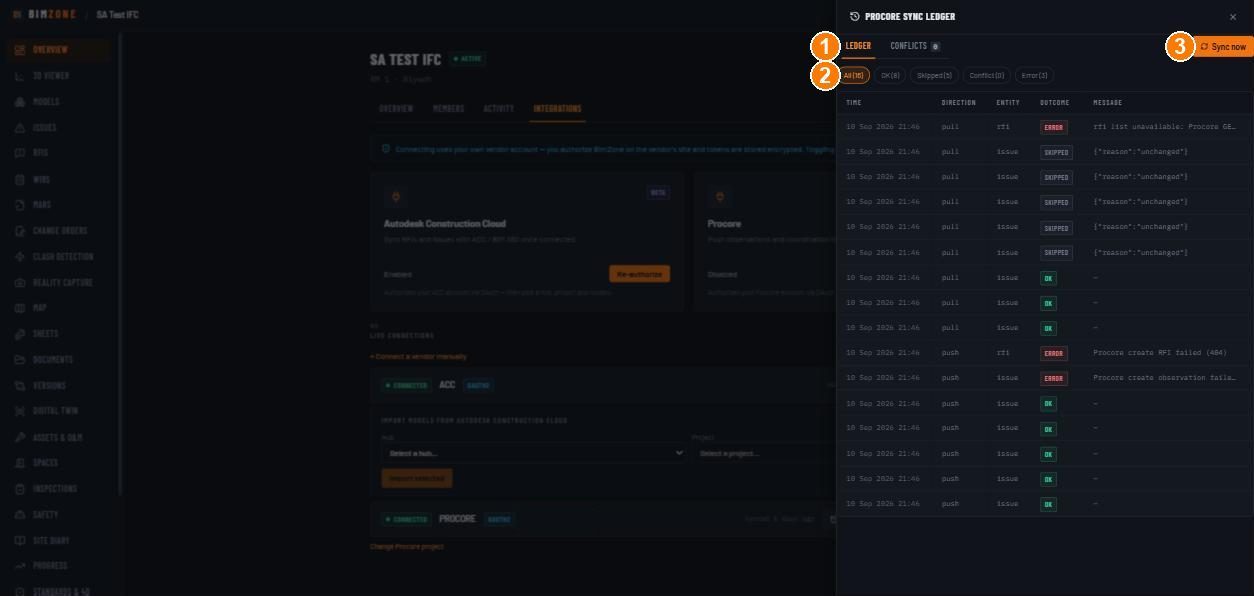

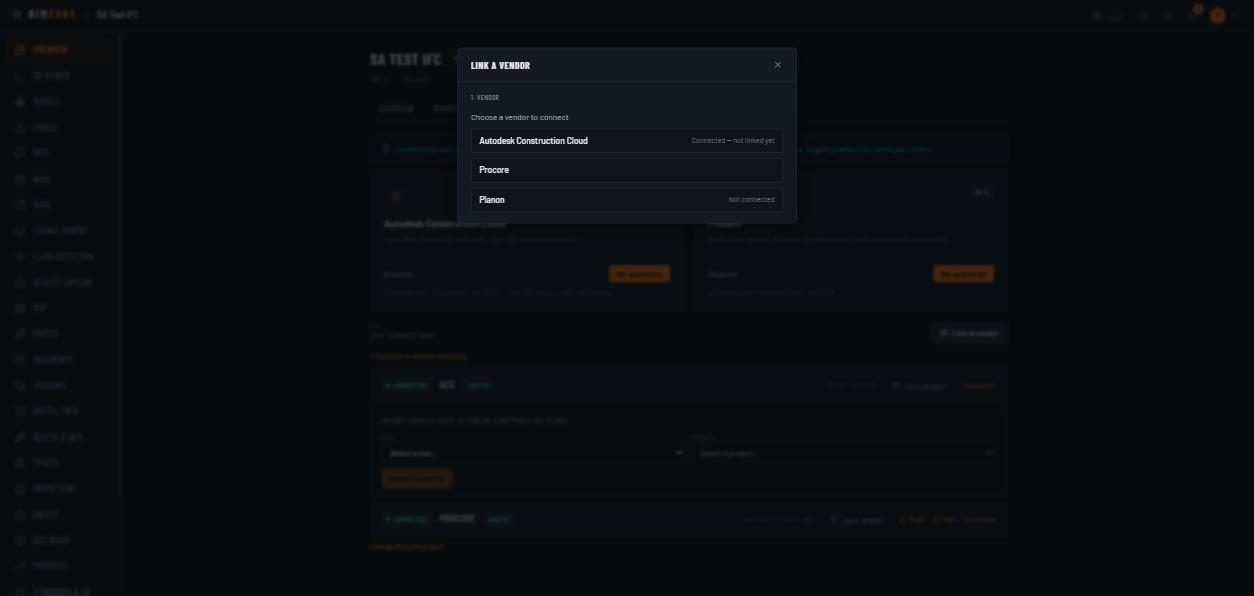

Link a vendor Sync ledger

1 · Ledger / Conflicts tabs · 2 · outcome filters · 3 · Sync now

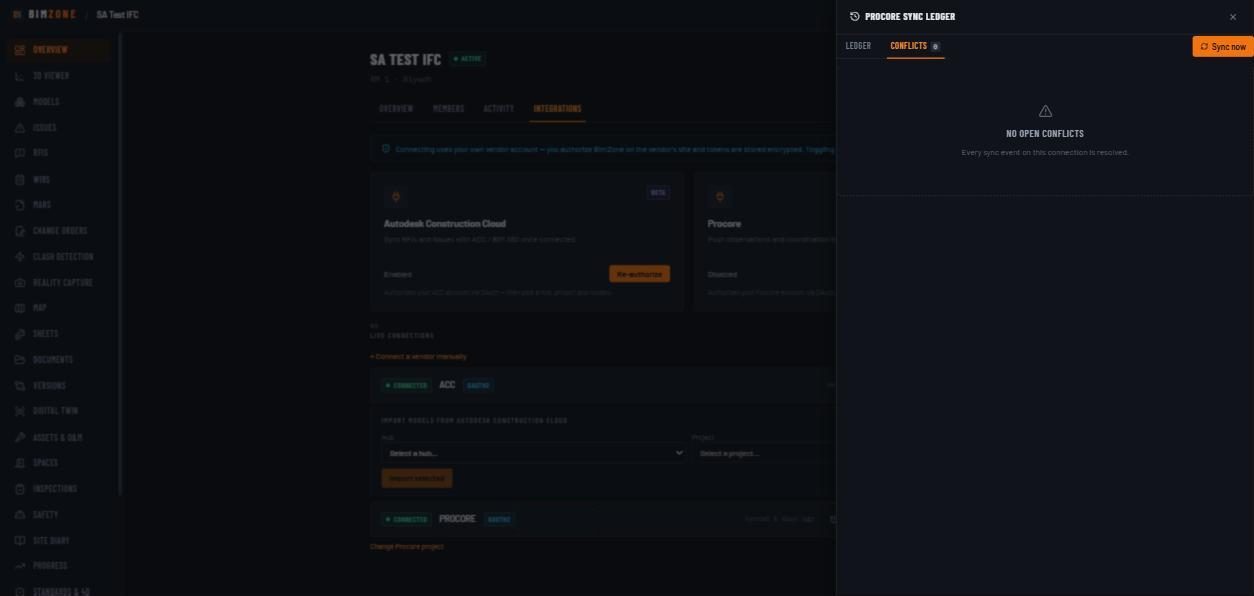

Conflicts tab

Controls¶

Cards: ACC — "Sync RFIs and issues with ACC / BIM 360 once connected." · Procore — "Push observations and coordination issues to Procore once connected." Each has Enabled / Disabled (saves intent only) and Connect / Re-authorize.
Live connections: Link a vendor (wizard: 1 · Vendor → 2 · Connect / Project) · + Connect a vendor manually · per row: status pill (connected / error / disconnected / needs authorization / syncing…), vendor, auth kind, linked company/project, last synced, Sync ledger, Push, Pull, Disconnect, Change Procore project; ACC: Hub, Project, Import selected.
Sync ledger drawer: Ledger (filters, table) · Conflicts (n) (per record Take remote / Keep local) · Sync now.

What happens after¶

A push creates or updates the vendor record and stores the vendor's etag on the link; a pull applies vendor changes to local records that have not changed locally.
Conflict rule: before pushing, BimZone re-reads the vendor record; if its etag differs from the one stored at the last sync and the local record changed since, nothing is written and the record is logged as conflict. Before pulling, a locally-changed record is likewise not overwritten. Only an explicit per-record resolution moves it.
integrations.synced and integrations.conflict_resolved are audited.

Connections to other modules¶

Issues (ACC issues, Procore observations), RFIs (ACC), Models (ACC import), Assets & Spaces (Planon), Audit log.

Data in / data out¶

Out to vendors: issues/RFIs/observations, assets/spaces. In: vendor issues/RFIs/observations, imported models. Credentials never leave the encrypted store and are never shown again.

Permissions and approval¶

Connect, disconnect, push, pull, resolve conflicts: project Admin. Read the ledger: any member.

Common mistakes and troubleshooting¶

"Procore create RFI failed (404)" / "rfi list unavailable" — the RFI tool is not enabled on that Procore project; enable it in Procore or accept that only observations sync.
ACC shows "never synced" — pick a hub and project first; ACC issue sync also needs the operator's webhook registration.
Status pill "needs authorization" — the vendor token expired; Re-authorize.
Take remote changed nothing — it resets the connection's watermark and pulls; if the vendor record is unchanged since your last sync, there is nothing to take.
config.baseUrl rejected (Planon) — the URL must be https and resolve to a public address.
Browser autofilled the API key with your login password — clear the field; vendor credential fields are not your BimZone login.

Limitations and integration prerequisites¶

No scheduled polling; sync is webhook- and button-driven.
ACC manual sync is push-only; pulls come from ACC webhooks.
Planon has no conflict resolution (last write wins per sync).
Other vendors need their adapter to exist in the build; the Link a vendor list is the truth.

Where to go next¶

Accounting · API keys and outgoing webhooks.

Accounting¶

What it does¶

Pushes customers, invoices, vendor bills and cost codes to an accounting system. "BimZone works fully without one."

Who uses it and why¶

Finance, when the company wants project costs mirrored in its books.

Prerequisites¶

Workspace admin. A provider with an available adapter — today Odoo. QuickBooks Online, Xero, Zoho Books, Microsoft Dynamics 365, Oracle ERP, SAP S/4HANA and Sage are listed as Pending ("Listed so an unsupported provider is distinguishable from a disconnected one. Availability here means BimZone's adapter exists — not that it has been verified against a live account.").

Step-by-step¶

Workspace settings › Accounting › connect Odoo (base URL, credentials).
Watch Entity mapping ("Which BimZone record is which record in the provider, and when it last synced."). Retry connection if the provider stops answering; Disconnect keeps the mappings.

Controls¶

Provider catalogue · connection card (Provider, Authentication, Connected / Failing / Disconnected, "Last successful sync …", Retry connection, Disconnect) · Entity mapping table.

What happens after¶

Records sync on their events; failures show as Failing with the provider's message.

Connections to other modules¶

Takeoff & Cost (cost codes), Change Orders (commercial context only).

Data in / data out¶

Out: customers, invoices, vendor bills, cost codes.

Permissions and approval¶

Workspace admin only ("Only workspace admins can retry or disconnect.").

Common mistakes and troubleshooting¶

" has no adapter in this build yet — pending decision …" — choose Odoo or wait for the adapter.

Limitations and integration prerequisites¶

One provider per workspace; adapters other than Odoo are not shipped.

Where to go next¶

API keys and outgoing webhooks.

API keys and outgoing webhooks¶

What it does¶

Scoped service-account keys for BI feeds, gateways and scripts, and outgoing webhook subscriptions that call your endpoint when things happen.

Who uses it and why¶

BI analysts, IoT integrators, developers.

Prerequisites¶

Workspace admin to create keys. Read the API reference for endpoints, errors, pagination, rate limits and versioning.

Step-by-step¶

Workspace settings › API keys: Key name, Scope (Read · Write · Admin), Create key. Copy the key — it is shown once.
Call the API with header X-Api-Key: bz_… (or a user bearer token). Feeds: GET /api/feed/issues?format=csv, /rfis, /clashes, /photos, /projects. Sensor ingest: POST /api/projects/:id/sensors/readings (Write).
Webhooks: POST /api/v1/webhooks (Write scope) returns the signing secret once. Every delivery carries X-BimZone-Delivery-Id (your idempotency key), X-BimZone-Event, X-BimZone-Timestamp and X-BimZone-Signature (sha256=<hex> HMAC over ${timestamp}.${rawBody}). Delivery is at-least-once; retries six times then dead-letters; five consecutive dead-letters disable the subscription (active, disabledReason in GET /api/v1/webhooks).

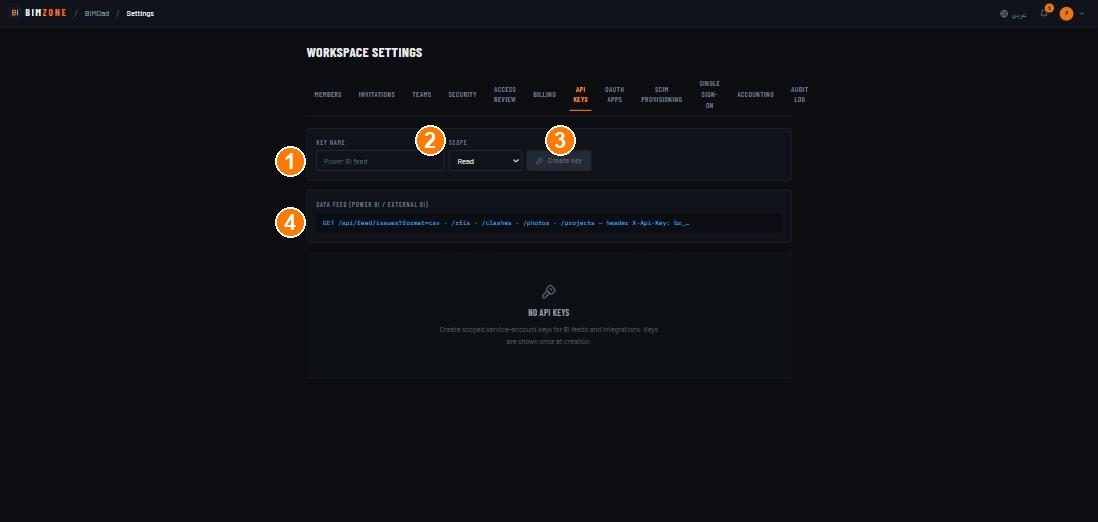

API keys

1 · Key name · 2 · Scope · 3 · Create key · 4 · the BI feed URLs

Controls¶

Key form · key list (name, prefix, scope, last used, revoked) · revoke. Webhooks are API-managed (no UI).

What happens after¶

Keys are hashed at rest; the prefix is shown for identification. Revoked keys fail with 401.

Connections to other modules¶

Analytics feeds, Sensors, Automation (rules run server-side without keys), external systems.

Data in / data out¶

Out: whatever the feed or webhook event carries (see the API reference's event list).

Permissions and approval¶

Workspace admin creates and revokes keys. A key acts within its scope only.

Common mistakes and troubleshooting¶

401 on a feed — wrong header name (X-Api-Key), revoked key, or Read scope missing.
Duplicate webhook deliveries — expected; deduplicate on X-BimZone-Delivery-Id.
Subscription disabled — five consecutive dead-letters; fix the endpoint and create it again.

Limitations and integration prerequisites¶

Webhook subscriptions have no UI; the secret cannot be re-shown.

Where to go next¶

OAuth applications.

OAuth applications¶

What it does¶

Lets third-party applications ask members for delegated access (authorization-code flow with PKCE), and lets admins review, suspend and revoke what has been authorised.

Who uses it and why¶

Workspace admins and the developers of client apps.

Prerequisites¶

Workspace admin (owner for some actions, as the screen indicates).

Step-by-step¶

Workspace settings › OAuth apps › Register app: name, redirect URIs, allowed scopes, confidential or public. Copy the client secret — shown once.
The app runs the authorization-code + PKCE flow against BimZone's authorization server (discovery at /oauth/.well-known/oauth-authorization-server).
Authorized applications lists grants members have given; Revoke kills that grant's tokens.
Containing a leak: Suspend the app ("refuses every new authorization immediately and is reversible; the client ID survives"). Delete does both and cannot be undone.

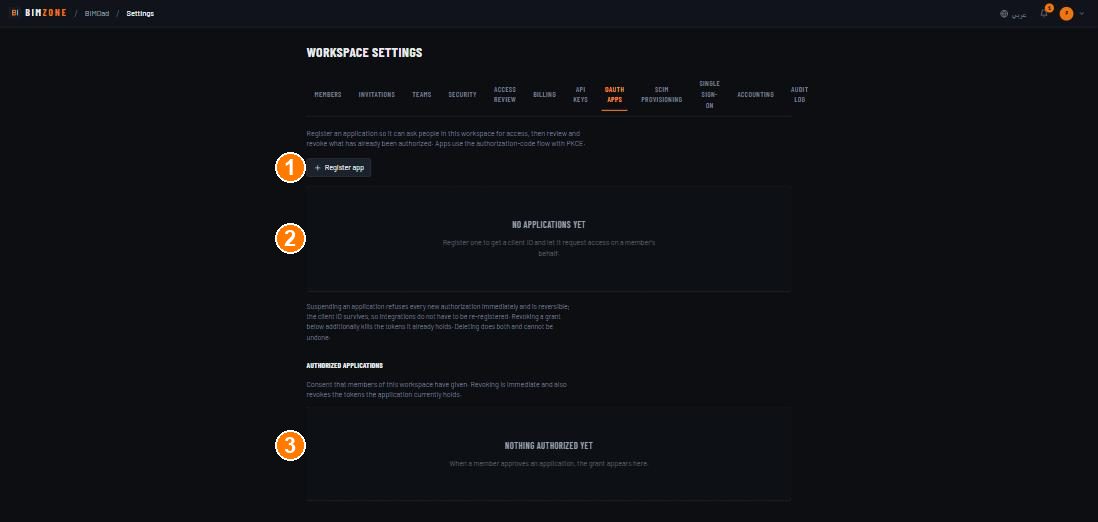

OAuth apps

1 · Register app · 2 · registered applications · 3 · authorized applications (grants)

Controls¶

Register app · per app: edit (redirect URIs / scopes validated exactly as at registration), Suspend, Delete · grants list with Revoke.

What happens after¶

oauth.app_registered / app_updated / app_deleted are audited. Suspended apps fail authorization immediately.

Connections to other modules¶

Audit log; the API surface the app calls.

Data in / data out¶

None beyond tokens.

Permissions and approval¶

Workspace admin.

Common mistakes and troubleshooting¶

Redirect URI refused — the same validation applies to registration and edit; use exact, absolute URIs.

Limitations and integration prerequisites¶

Apps registered here talk to this deployment only.

Where to go next¶

SCIM provisioning · Single sign-on.

SCIM provisioning¶

What it does¶

Lets an identity provider create, update and deactivate user accounts in the workspace over SCIM 2.0 (/scim/v2, RFC 7644 Users).

Who uses it and why¶

IT administrators with Okta, Entra ID or similar.

Prerequisites¶

Workspace owner. An IdP that speaks SCIM 2.0.

Step-by-step¶

Workspace settings › SCIM provisioning › New token ("Name it after the identity provider that will use it") › Create token; copy it once.
"Point your identity provider at /scim/v2 and authenticate with the token as a bearer. Deactivating a user there deactivates them here."

Controls¶

Token list · New token · revoke.

What happens after¶

Provisioned users appear under Members; a deprovisioned user loses access immediately. The last workspace owner can never be stripped by SCIM.

Connections to other modules¶

Members, Access review, Audit log.

Data in / data out¶

In: user identities from the IdP. Out: SCIM responses.

Permissions and approval¶

Owner only.

Common mistakes and troubleshooting¶

409 on create — the email already belongs to a user in another workspace with an accepted membership; SCIM will not attach across tenants.

Limitations and integration prerequisites¶

Users only (no SCIM Groups).

Where to go next¶

Single sign-on.

Single sign-on (SSO)¶

What it does¶

SAML 2.0 or OpenID Connect sign-in routed by verified email domains, with the option to require SSO or disable passwords.

Who uses it and why¶

IT administrators; every member once it is on.

Prerequisites¶

Workspace owner; control of the email domain's DNS; an IdP.

Step-by-step¶

Workspace settings › Single sign-on › Add a domain › publish the DNS record shown › verify.
Identity providers: Protocol (SAML 2.0 / OpenID Connect), Display name, Login handle ("Appears in the sign-in URL. Lower-case letters, digits and hyphens."), IdP sign-in URL, IdP signing certificate ("Base64 certificate body. Stored encrypted and never shown again.") — or for OIDC the issuer (https://acme.okta.com), client ID and client secret. Add connection. "Give these two values to your IdP administrator" (the SP entity ID / ACS URL shown above the form).
Test with one user via the or continue with row on the sign-in page.
Sign-in policy: Require single sign-on ("Members must sign in through a connection above. Passwords and passkeys are refused.") and/or Disable password sign-in ("Passwords are refused; passkeys still work."). "An owner whose email is outside your verified domains keeps password sign-in, so you cannot lock yourself out."

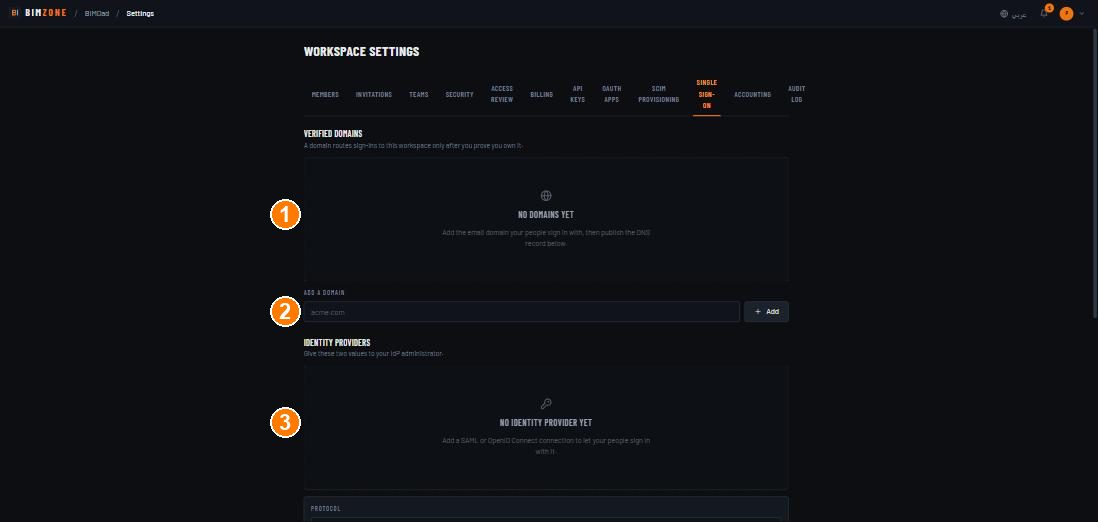

Single sign-on

1 · verified domains · 2 · add a domain · 3 · identity providers

Controls¶

Domains list · Add · IdP form · connection list · policy switches.

What happens after¶

Sign-ins for the domain go through the IdP; MFA enforcement still applies (an SSO user without MFA is walked through enrolment).

Connections to other modules¶

Members, Security (MFA), Audit log.

Data in / data out¶

In: IdP metadata and certificate (encrypted). Out: SAML/OIDC requests.

Permissions and approval¶

Workspace owner (the whole SSO screen is owner-only).

Common mistakes and troubleshooting¶

"SSO sign-in could not be verified — please start again from the sign-in page." — the request/response pair did not match; retry from the sign-in page.
Locked out after requiring SSO — sign in with an owner whose email is outside the verified domains; passwords still work for them.

Limitations and integration prerequisites¶

One signing certificate per connection. IdP-initiated SAML is off unless the connection's idp_initiated flag is set (an operator/API setting); SP-initiated sign-in is the default.

Where to go next¶

Automation.
